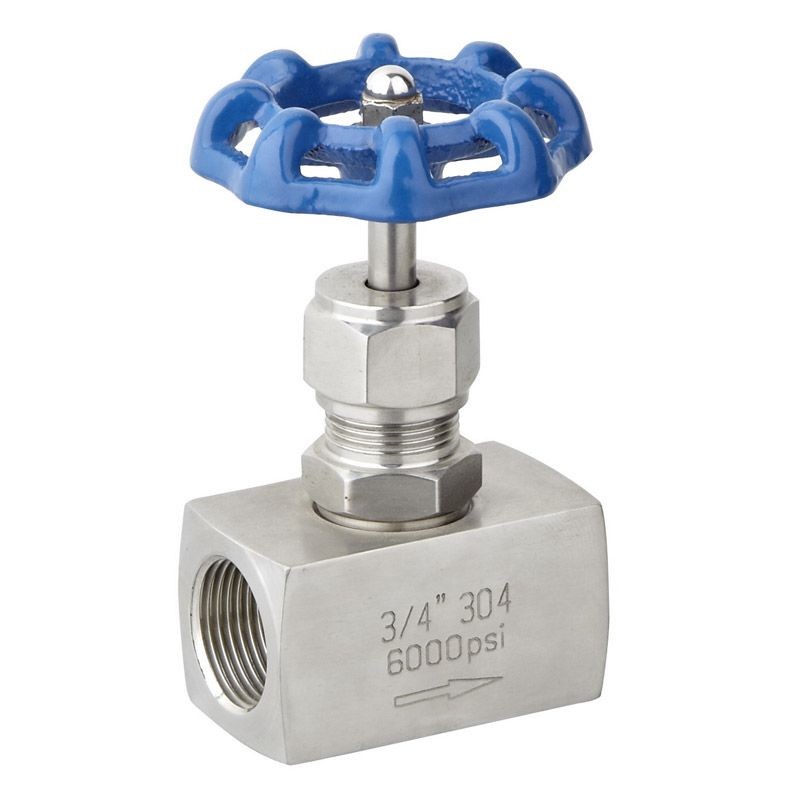

Its function is to open or cut off the pipeline access.
Nominal diameter: DN6 ~ DN50
nominal pressure: 0 ~ 32MPa
body material: SS304, SS316
connection form: internal thread connection
structure features: cone seal, movable disc,
applicable temperature: ≤450 ° C
thread method: G thread, NPT thread, zG thread, PT thread and other suitable
medium: water, steam, oil, etc.
Model
Nominal pressure
(MPa)
Test pressure(MPa)
operating pressure(MPa)
Operating temperature
(℃)
Shell
Seal (liquid)
seal (gas)
J11W-16
1.6
2.4
1.76
0.6
1.6
P≤540℃
J11W40P
4.0
6.0
4.4
0.6
4.0
J11W-160
16.0
24.0
17.6
0.6
16.0
C≤425℃
J11W-320P
32.0
48.0
35.2
0.6
32.0
