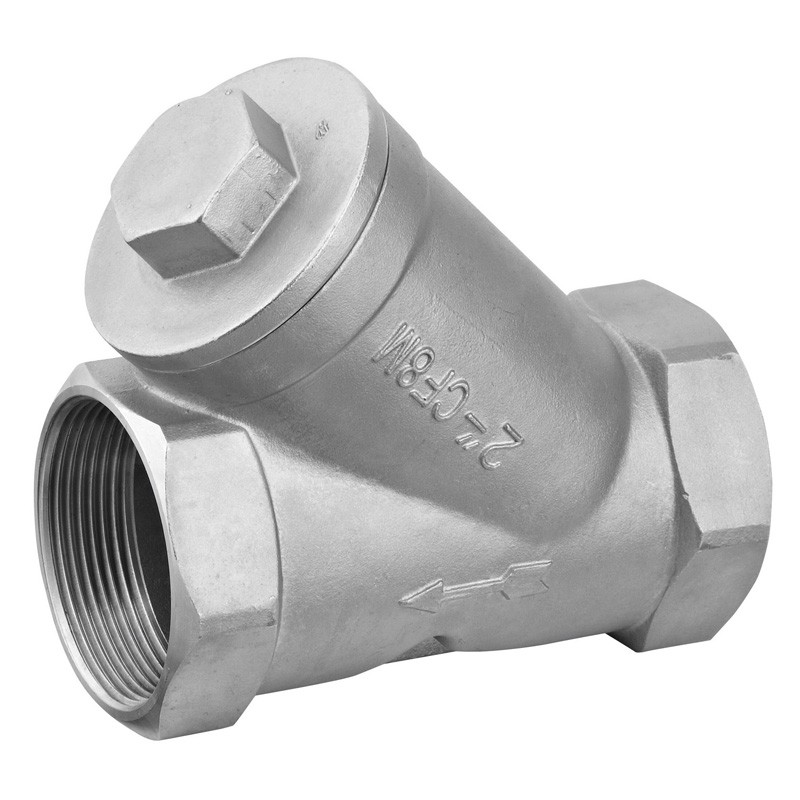

The y-type threaded strainer is used to eliminate impurities from the medium or fluid flowing through it. It's designed to capture and remove unwanted particles and contaminants from the fluid to ensure a cleaner and more reliable process.
| Nominal Diameter | DN (mm) | 15~65 | ||||||
| Nominal Pressure | PN (MPa) | 1.6 | 2.5 | 4.0 | 6.4 | |||
| Test Pressure | Strength Pressure Test (mpa) | 2.4 | 3.8 | 6.0 | 9.6 | |||
| Hydraulic Seal Pressure Test (mpa) | 1.9 | 3.0 | 4.8 | 7.6 | ||||
| Pneumatic Seal Pressure Test (mpa) | 0.6 | 0.6 | 0.6 | 0.6 | ||||
| Suitable Medium | Water, Oil, Gas, and Certain Corrosive Liquids | |||||||
| Suitable Temperature Range | -20~300°C | |||||||
| Connection Method | Threaded Connection | |||||||
| Thread Type | NPT, BSPT, BSP, DIN | |||||||
| Actuation Method | Manual | |||||||
| Ball or Valve Stem | 304,316 | |||||||
| Valve Body and Valve Cover | WCB, CF8, CF8M | |||||||
