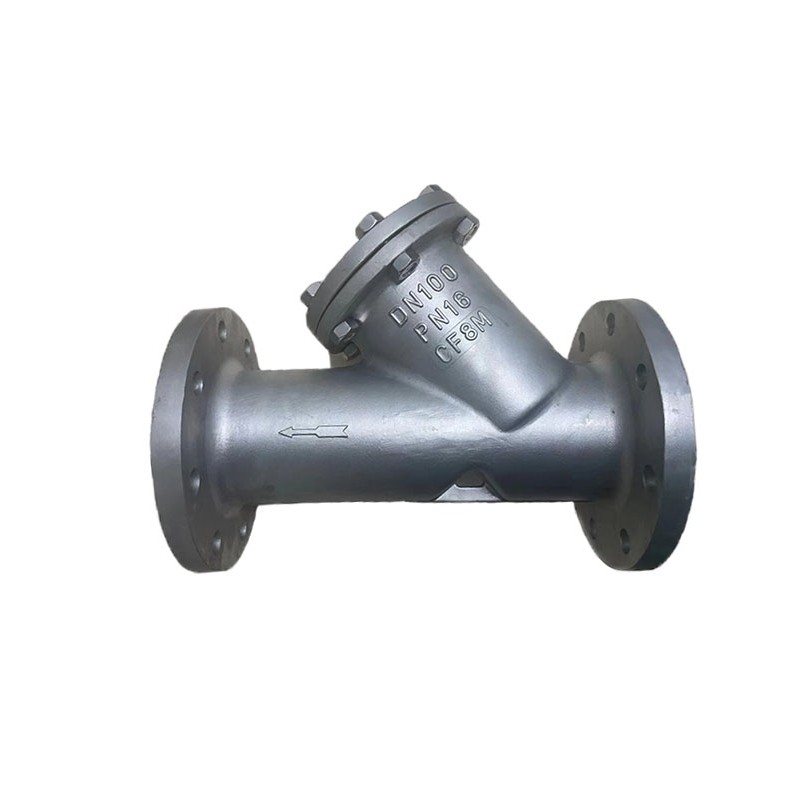

A Y-type flanged strainer is a device used in a pipeline system to remove impurities from the conveyed medium.
| Nominal Diameter | DN (mm) | 15~65 | ||||||
| Nominal Pressure | PN (MPa) | 1.6 | 2.5 | 4.0 | 6.4 | |||
| Test Pressure | Strength Pressure Test (mpa) | 2.4 | 3.8 | 6.0 | 9.6 | |||
| Hydraulic Seal Pressure Test (mpa) | 1.9 | 3.0 | 4.8 | 7.6 | ||||
| Pneumatic Seal Pressure Test (mpa) | 0.6 | 0.6 | 0.6 | 0.6 | ||||
| Suitable Medium | Water, Oil, Gas, and Certain Corrosive Liquids | |||||||
| Suitable Temperature Range | -20~300°C | |||||||
| Connection Method | Flange Connection | |||||||
| Thread Type | NPT, BSPT, BSP, DIN | |||||||
| Actuation Method | Manual | |||||||
| Ball or Valve Stem | 304,316 | |||||||
| Valve Body and Valve Cover | WCB, CF8, CF8M | |||||||
